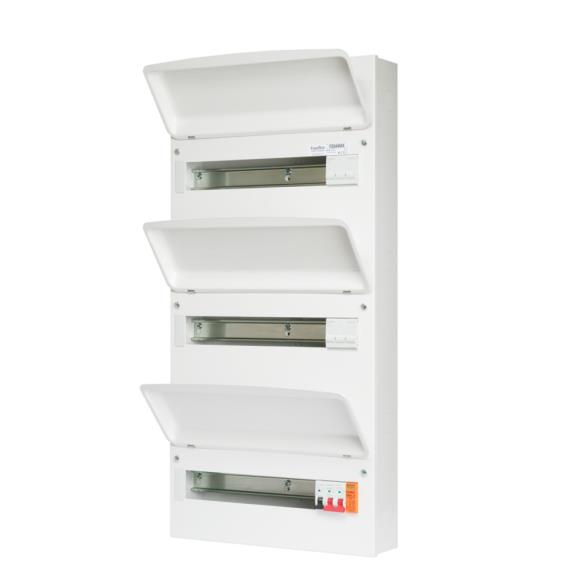

FuseBox F2044MX 44 Usable Way Triple Row 100A Main Switch T2 SPD Consumer Unit 18th Edition

The new Fusebox F2044MX Consumer Unit is a fantastic cost effective and quality solution for any suitable application.

Dimensions (HxWxD) 762x378x113

- 44 Usable Ways
- T2 surge protection (1 module size and protected by a 32A MCB all included in consumer unit)
- Earth and neutral terminal bars on top of consumer unit
- Removable and raised DIN rail
- Round knock-outs on all faces (20mm & 32mm top and bottom, 40m on sides)
- Extra height for RCBOs (standard and mini RCBOs available on our store)
- 1mm electro-galvanised steel (zinc)
- Busbar shroud
- RAL 9001 powder-coated arctic white finish to give a stylish look
- Tail clamp included (ACCF)
- Circuit identification labels (Full label pack)
- Now includes grommet strip
- Captive screws on front cover as standard for ease of installation
- IP20XC Rated
- BS EN61439-3 compliant
