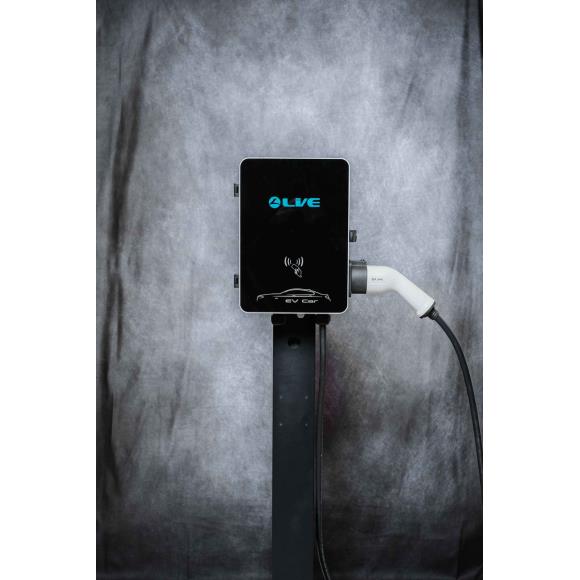

Live Electrical LEVCS-7 Car Charging Point 7kW EV Charger No Earth Required
£514.25 Ex VAT
£617.10 Inc VAT
Code: LEVCS-7
In Stock: 0
Estimated Dispatch 2-3 Working Days
Features & Benefits:
Product Description
Now available for July pre order!
The AC charging station provides AC 50HZ, rated voltage 220V AC power supply for charging electric vehicles with on-board chargers, and is mainly suitable for the following places:
Large, medium, and small electric vehicle charging stations; Various public places with parking spaces for electric vehicles, such as urban residential communities, shopping plazas, and power business places; Transportation hub areas such as high-speed service areas, stations, and docks; Real estate and project construction acceptance needs.
No Earth Rod Required
Type 2 Plug Fitted
Energy security (Built in car reader + 2 cards)
Competitive Price
5 Metre charging lead
Built in type 2 RCCB
Features:
- Provide two installation methods: column type and wall type.
- Adopt AC220V AC input
- The main control board uses a single-chip microcomputer with an embedded operating system, and the charging mode is divided into automatic charging and charging mode four types of time, choice of charging amount, and choice of charging power. RS-485 networking can be reserved.
- communication interface, and provide optional GPRS, 4G and other networking methods.
- It adopts a 4.3-inch display screen and can set the charging mode (the display screen is only available in the operating version).
- Single-phase electronic electric energy meter is used for electricity metering, and communicates with the main control board through the RS-485 interface
- Adopt non-contact smart card reader to read IC card related information and communicate with main control board through RS-485 interface.
- The main control board background program performs the identity identification, user information recording, and charging.
- Electricity cost calculation, etc.; the incoming switch adopts a switch with leakage protection function, and installs an emergency stop button (swiping card power Can only be provided for the swiping version and the operating version)
- The shape adopts sheet metal and part of ABS plastic structure.
Technical Data:
AC220V+20% - Input Voltage
50+10HZ - Input Frequency
AC220V+20% - The Output Voltage
32A - Maximum Output Voltage
Level 0.5 - Measurement Accuracy
211 - Electrical Index
-25°C~+50 °0 - Operating Temperature
5%-95% non-condensing cream - Working Humidity
< 2000m - Working Elevation
IP 54 - Protection Level
The AC charging station provides AC 50HZ, rated voltage 220V AC power supply for charging electric vehicles with on-board chargers, and is mainly suitable for the following places:
Large, medium, and small electric vehicle charging stations; Various public places with parking spaces for electric vehicles, such as urban residential communities, shopping plazas, and power business places; Transportation hub areas such as high-speed service areas, stations, and docks; Real estate and project construction acceptance needs.
No Earth Rod Required
Type 2 Plug Fitted
Energy security (Built in car reader + 2 cards)
Competitive Price
5 Metre charging lead
Built in type 2 RCCB
Features:
- Provide two installation methods: column type and wall type.
- Adopt AC220V AC input
- The main control board uses a single-chip microcomputer with an embedded operating system, and the charging mode is divided into automatic charging and charging mode four types of time, choice of charging amount, and choice of charging power. RS-485 networking can be reserved.
- communication interface, and provide optional GPRS, 4G and other networking methods.
- It adopts a 4.3-inch display screen and can set the charging mode (the display screen is only available in the operating version).
- Single-phase electronic electric energy meter is used for electricity metering, and communicates with the main control board through the RS-485 interface
- Adopt non-contact smart card reader to read IC card related information and communicate with main control board through RS-485 interface.
- The main control board background program performs the identity identification, user information recording, and charging.
- Electricity cost calculation, etc.; the incoming switch adopts a switch with leakage protection function, and installs an emergency stop button (swiping card power Can only be provided for the swiping version and the operating version)
- The shape adopts sheet metal and part of ABS plastic structure.
Technical Data:
AC220V+20% - Input Voltage
50+10HZ - Input Frequency
AC220V+20% - The Output Voltage
32A - Maximum Output Voltage
Level 0.5 - Measurement Accuracy
211 - Electrical Index
-25°C~+50 °0 - Operating Temperature
5%-95% non-condensing cream - Working Humidity
< 2000m - Working Elevation
IP 54 - Protection Level
