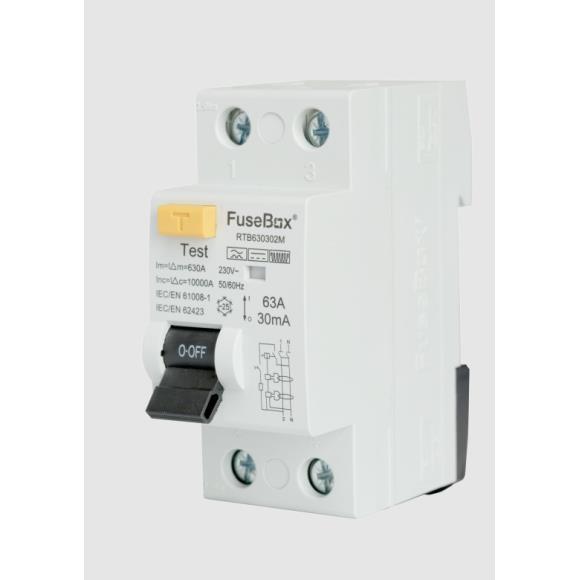

FuseBox RTB630302M RCD DP B 63A 30mA 2 Pole
£115.89 Ex VAT
£139.07 Inc VAT
Code: RTB630302M
In Stock: 2
Next Working Day Delivery
Features & Benefits:
Product Description
Application :
EV Electric vehicle charging
(DC fault current greater than 6mA)
PV photovoltaic systems
Inverters
Uninterruptible power supplies (UPS)
RCD Type B
IEC EN 61008-1 / IEC EN 62423
Rated current In 63A
Poles 2P
Numbers of poles/modules 2POLE / 2MODULE 36mm
Rated voltage Ue 2P, 230V
Insulation voltage Ui 500V
Rated frequency 50/60Hz
Rated sensitivity I?n 0.03A (30mA)
Rated residual making and breaking capacity I?m 630A (In=63A)
Short-circuit current Inc= I?c 6000A
SCPD fuse
Break time under I?n =0.1S
Rated impulse withstand voltage (1.2/50)Uimp 6kV
Dielectric test voltage at and ind Freg. for 1 min 2.5kV
Electrical life and Mechanical life 4000 CYCLES
Pollution degree 2
EV Electric vehicle charging
(DC fault current greater than 6mA)
PV photovoltaic systems
Inverters
Uninterruptible power supplies (UPS)
RCD Type B
IEC EN 61008-1 / IEC EN 62423
Rated current In 63A
Poles 2P
Numbers of poles/modules 2POLE / 2MODULE 36mm
Rated voltage Ue 2P, 230V
Insulation voltage Ui 500V
Rated frequency 50/60Hz
Rated sensitivity I?n 0.03A (30mA)
Rated residual making and breaking capacity I?m 630A (In=63A)
Short-circuit current Inc= I?c 6000A
SCPD fuse
Break time under I?n =0.1S
Rated impulse withstand voltage (1.2/50)Uimp 6kV
Dielectric test voltage at and ind Freg. for 1 min 2.5kV
Electrical life and Mechanical life 4000 CYCLES
Pollution degree 2
| Brand | FuseBox |
|---|
| Download | Datasheet |
|---|
