Europa TR2-D18321 O/L Relay 12.0-18.0A
£23.35 Ex VAT
£28.02 Inc VAT
Code: TR2-D18321
In Stock: 2
1 expected 04/11/2024
Next Working Day Delivery
Features & Benefits:
Product Description

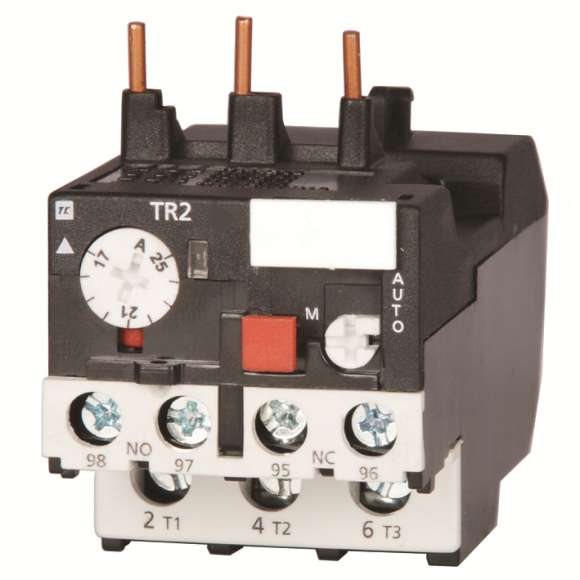

Europa TR2-D18321 O/L Relay 12.0-18.0A
For use with the following contactors
TC1-D09, D12, D18 & D25
A TR2-D thermal overload relay whiich meets IEC 60947-1, 60947-4-1, NFC 63-650, VDE 0660, BS 4941 as well as meeting UL, CSA and IEC approvals.
Setting range: 12-18A
Tripping class (A): 10
Insulation/ operating voltage: 690V/ 600V
Frequency limits: 400Hz
VDE 0106 protection against finger contact IP2x
Dielectric strength @50Hz: IEC 255-5, 6kV
Impulse withstand voltage: IEC 801-5, 6kV
Tripping threshold (A): 1.14 0.06ln
Sensitivity to phase failure: tripping current 25% above In
Please see link below for additional information
For use with the following contactors
TC1-D09, D12, D18 & D25
A TR2-D thermal overload relay whiich meets IEC 60947-1, 60947-4-1, NFC 63-650, VDE 0660, BS 4941 as well as meeting UL, CSA and IEC approvals.
Setting range: 12-18A
Tripping class (A): 10
Insulation/ operating voltage: 690V/ 600V
Frequency limits: 400Hz
VDE 0106 protection against finger contact IP2x
Dielectric strength @50Hz: IEC 255-5, 6kV
Impulse withstand voltage: IEC 801-5, 6kV
Tripping threshold (A): 1.14 0.06ln
Sensitivity to phase failure: tripping current 25% above In
Please see link below for additional information
| Brand | Europa Components |
|---|---|
| Amperage | 12.0-18.0 Amp |
| Download | Europa Additional Information |
|---|---|
| Download | Catalogue Page |
| Download | Technical Data Sheet |
